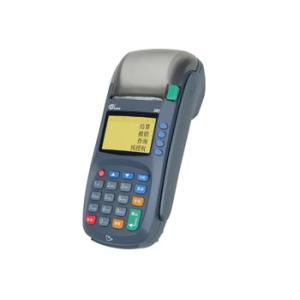

PAX S80 COUNTERTOP PAYMENT TERMINAL

• TYPE:Desktop

  MANUFACTURE:pax
  DESCRIPTION
  • S80 is an advanced countertop POS terminal which combines innovation and high performance to assure, faster, more reliable transactions
  • The PCI PTS 2.1 approved S80 offers advanced connectivity, equipped with various communication technologies such as GPRS, WiFi, Ethernet and PSTN. An intuitive ATM-style interface and ergonomic keypad make operation easier for merchant and consumer alike.
  • The S80 can support multiple payment and value-added applications, making this one of the most reliable and advanced devices in the market.
  KEY FEATURES
  • High performance, ruggedized, with small footprint
  • Large Memory Capacity
  • Provide exceptional processing on debit, credit, EBT and value-added transactions
  • PCI PTS 2.1 certified
  • USB device to allow download easier and more convenient
  • Remote download for applications and parameters
  • Integrated Contactless
  • EMV 2000
  • RoHS
  SPECIFICATION
  • Processor 32-bit, ARM9 200MHz
  • Memory 24MB, up to 128MB
  • Display 128x 64 LCD, White backlit
  • Keypad 3 x 4 numeric keypad, 8 functional keys, 4 ATM keys, 1 Power ON/OFF key
  • Printer Thermal printer, Speed: 20 lines/sec, Standard paper roll: 58mm (2.25 in.)
  • Card Reader:
  • Magnetic Card: Track 1/2/3, bi-directional
  • Smart Card 1, EMVL1&2
  • External Contactless Card (optional): MasterCard PayPass, VISA payWave, ISO/IEC 14443 Type A/B, Mifare compliant
  • Card Slots 3 SAMs (options for 1 SIM), ISO7816
  • Communication Modem: Sync. (HDLC, up to 9600bps, V.22/V22bis, V.29); Async. (V.92, up to 56kbps) Ethernet, GPRS (optional)
  • Peripheral Ports 1 PIN Pad port, 1 RS232, 1 RS232/Ethernet , 1 Line port, 1 USB (optional)
  • Security
  • PCI PTS 2.1 standard
  • DUKPT, Master/Session, DES, 3DES; ANSI ISO9564 format 0, 1, 3
  • PIN ciphered key algorithm; ANSI X9.9/X9.19 MAC algorithm
  • Environmental 0°C to 50°C (32°F to 122°F) operating temperature; 10% to 90% relative humidity, non-condensing; -20°C to 70°C (-4°F to 158°F) storage temperature
  • Voltage Input: 100~240VAC, 50Hz/60Hz, 1.5A; Output: 8.2VDC, 5A
  • Physical Length: 216mm (8.5in.); Width: 95mm (3.74 in.); Height: 86 mm (3.390 in.)
  • Weight 525g
  OPTIONS
  • Basic
    PCI, Dial-up, USB
  • Basic (PCI V2.1)
    PCI, Dial-up, USB
  • IP
    PCI, Dial-up, IP, USB
  • IP (PCI V2.1)
    PCI, Dial-up, IP, USB
  • GPRS
    PCI, GPRS, USB
  • GPRS (PCI V2.1)
    PCI, GPRS, USB
  • Twist Cable
    Optional
  • Adaptor
    Optional
  • Vehicle Charger
    Optional
  • Wall Holder
    Optional
